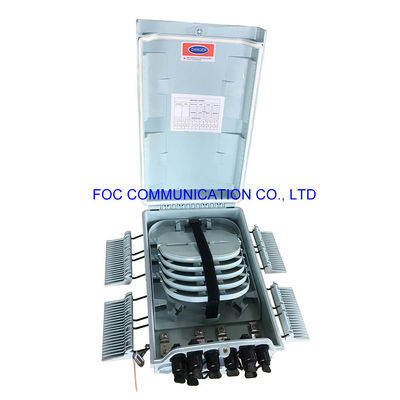

Waterproof FTTX IP65 Fiber Optic Distribution Box 8 Ports

Waterproof FTTX IP65 Fiber Optic Distribution Box 8 Ports

Product Details:

Place of Origin: China
Brand Name: FOCABLE
Certification: RoHS Compliant, SGS Certificate, ISO Certificate
Model Number: Fiber Access Terminal FATB-0408R

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Packaging Details: 1PCS/Carton
Delivery Time: 3-5days
Supply Ability: 10000pcs/month
Get Best Price Contact Now

Detail Information

Reinforced Adapter: 8pcs SC/UPC Or 8pcs SC/APC Port: 8 Ports
IP Protection Level: IP65 Protection Level Fiber: 120 Fibers
Quality Control: 100% Test Before Shipping Splitter: 1*8 Splitter Can Be Installed
High Light:

FTTX Fiber Optic Distribution Box

,

IP65 Fiber Optic Distribution Box

,

8 Ports Fiber Optic Breakout Box

Product Description

Fiber Access Termination Box Used for FTTX Network Systems Water-proof design with IP-65 Protection level



Fiber access termination box FATB-0408R is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features● Waterproof design with IP-65 Protection level.
● Maximum 120F splice capacity,stainless anti-rust bolts and nuts.
● Plug-and-play installation, easy for maintenance and expansion.
● Integrated with splice cassette and cable management rods.
● Fiber bend radius control more than 40mm.
● 180 degree access wih buckled lock structure.
● 1*8 Splitter can be installed in each splice tray as option.
● 8 pcs of pre-installed reinforced water-proof adapter for SC.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable entrance for distribution cable gland(8-13.5mm)
Configuration
Fiber Access Terminal FATB-0408R Parameter
Material
Size
Max Capacity
Reinforced Adapter
Weight
Color
PC+ABS
AxBxC(mm)
Splice 120 Fibers
PLC splittter
8pcs SC/UPC
1.85kg
Grey/Black
340x220x95
5 trays x 24fiber/tray
1x8(SC)
or 8pcs SC/APC

Application
● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for Huawei pre-connectorized drop cable with reinforced connector.

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.



Optional Accessories
Pole mounted kits
